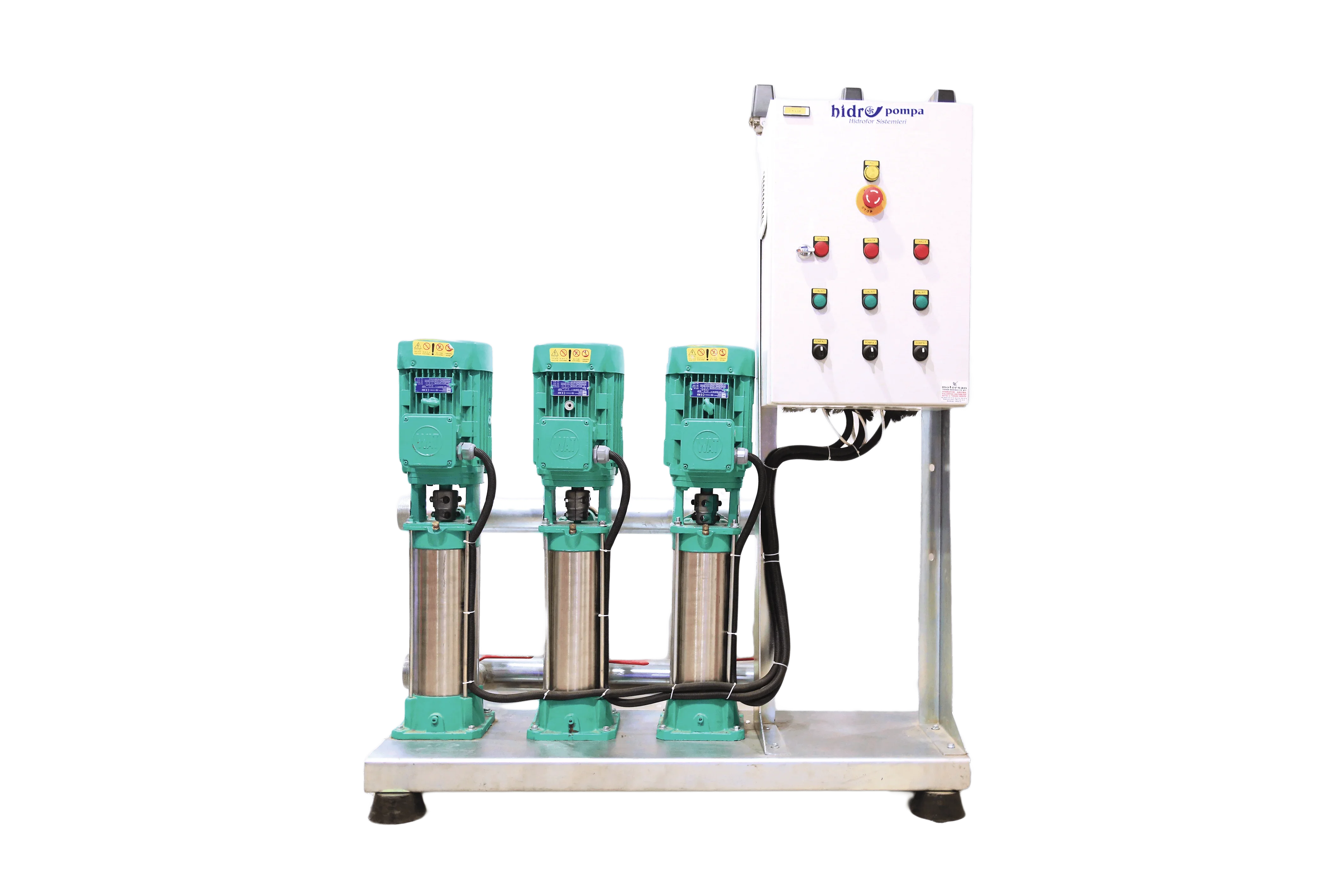

PRODUCT GENERAL FEATURES
- Maximum flow rate 12 m³/h
- Maximum head : 130 m
- Motor Voltage: 220/380 (contact our sales representative)
- Frequency :50 Hz - 60 Hz
- Fluid temperature : up to +60 ˚C
STANDARD SCOPE OF DELIVERY
- Valves and check valves for each pump
- Electric control panel
- Suction and discharge collectors
- Booster chassis
- anti-vibration rubber feet
- Wired level float switch to prevent running without water
ADDABLE FEATURES
- Direct guidance systems
- Electronic control systems
- Frequency control systems
- Soft-starter Control systems
AREAS OF USE
- General purpose water supply
| Pump Type |
Power(kw) |
Input-Output (Single) |
Input-Output (Douple) |
MSS |
Debi(m³/h) |
| 0 |
2 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
17 |
20 |
| HKP 40/5 |
3 |
2"-1.5" |
2.5" |
MSS |
71 |
68 |
66 |
65 |
62 |
55 |
48 |
38 |
- |
- |
- |
| HKP 40/7 |
4 |
2"-1.5" |
2.5" |
MSS |
100 |
95 |
93 |
90 |
85 |
75 |
66 |
52 |
50 |
45 |
- |
| HKP 40/8 |
5.5 |
2"-1.5" |
2.5" |
MSS |
120 |
110 |
106 |
104 |
100 |
89 |
80 |
76 |
70 |
60 |
- |
| HKP 40/9 |
5.5 |
2"-1.5" |
2.5" |
MSS |
130 |
122 |
120 |
118 |
115 |
100 |
90 |
80 |
71 |
65 |
- |
| HKP 40B/7 |
5.5 |
2"-1.5" |
2.5" |
MSS |
105 |
100 |
95 |
90 |
86 |
81 |
77 |
72 |
68 |
60 |
50 |
| Pump Type |
Power(kw) |
Input-Output (Single) |
Input-Output (Douple) |
MSS |
Debi(m³/h) |
| 0 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
| HKP 40A/7 |
3 |
2"-1,5"" |
2.5" |
MSS |
71 |
62 |
60 |
58 |
55 |
49 |
45 |
40 |
35 |
- |
- |
| HKP 40A/10 |
4 |
2"-2"-1,5"" |
2.5" |
MSS |
100 |
95 |
90 |
80 |
78 |
70 |
62 |
50 |
45 |
40 |
- |
| HKP 40A/12 |
5.5 |
2"-1.5" |
2.5" |
MSS |
117 |
105 |
92 |
90 |
85 |
75 |
66 |
52 |
50 |
45 |
- |
| Pump Type |
Power(kw) |
Input-Output (Single) |
Input-Output (Douple) |
MSS |
Debi(m³/h) |
| 0 |
12 |
15 |
16 |
18 |
24 |
30 |
| HKP 40B/4 |
4 |
2"-2" |
3"- 2,5" |
MSS |
57 |
50 |
48 |
46 |
45 |
35 |
18 |
| HKP 40B/6 |
5.5 |
2"-2" |
3"- 2,5" |
MSS |
86 |
77 |
71 |
69 |
66 |
52 |
30 |
| HKP 40B/7 |
5.5 |
2"-2" |
3"- 2,5" |
MSS |
90 |
88 |
75 |
70 |
68 |
65 |
40 |
| HKP 40B/8 |
7.5 |
2"-2" |
3"- 2,5" |
MSS |
114 |
102 |
97 |
94 |
92 |
70 |
41 |
| Pump Type |
Power(kw) |
Input-Output (Single) |
Input-Output (Douple) |
MSS |
Debi(m³/h) |
| 0 |
5 |
10 |
15 |
20 |
25 |
28 |
30 |
32 |
34 |
| HKP 50A/5 |
5.5 |
2.2" |
2.5" - 2.5" |
MSS |
80 |
78 |
75 |
70 |
62 |
59 |
45 |
20 |
- |
- |
| HKP 50A/6 |
5.5 |
2.2" |
2.5" - 2.5" |
MSS |
105 |
100 |
95 |
90 |
80 |
69 |
50 |
30 |
- |
- |
| HKP 50A/7 |
5.5 |
2.2" |
2.5" - 2.5" |
MSS |
115 |
105 |
95 |
90 |
85 |
75 |
60 |
40 |
- |
- |
| HKP 50A/8 |
5.5 |
2.2" |
2.5" - 2.5" |
MSS |
130 |
128 |
125 |
112 |
100 |
88 |
70 |
50 |
43 |
30 |
| Pump Type |
Power(kw) |
Input-Output (Single) |
Input-Output (Douple) |
MSS |
Debi(m³/h) |
| 0 |
15 |
20 |
25 |
30 |
35 |
40 |
| HKP 50C/2 |
5.5 |
2,5"-2" |
3" - 3" |
MSS |
60 |
45 |
40 |
35 |
30 |
25 |
20 |
| HKP 50C/3 |
5.5 |
2,5"-2" |
3" - 3" |
MSS |
80 |
65 |
60 |
53 |
48 |
42 |
35 |
| HKP 50C/4 |
7.5 |
2,5"-2" |
3" - 3" |
MSS |
100 |
83 |
77 |
70 |
65 |
58 |
50 |
| HKP 50C/5 |
11 |
2,5"-2" |
3" - 3" |
MSS |
120 |
108 |
102 |
90 |
82 |
72 |
60 |
| HKP 50C/6 |
15 |
2,5"-2" |
3" - 3" |
MSS |
142 |
125 |
120 |
110 |
100 |
90 |
75 |
| Pump Type |
Power(kw) |
Input-Output (Single) |
Input-Output (Douple) |
MSS |
Debi(m³/h) |
| 0 |
30 |
35 |
40 |
50 |
60 |
| HKP 65/3 |
7.5 |
2,5"-2,5" |
4" - 4" |
MSS |
65 |
48 |
45 |
40 |
35 |
30 |
| HKP 65/4 |
11 |
2,5"-2,5" |
4" - 4" |
MSS |
100 |
70 |
65 |
60 |
50 |
40 |
| HKP 65/5 |
15 |
2,5"-2,5" |
4" - 4" |
MSS |
115 |
85 |
80 |
75 |
63 |
50 |
| HKP 65/6 |
18.5 |
2,5"-2,5" |
5" - 4" |
MSS |
135 |
100 |
95 |
90 |
77 |
65 |
